1  Orbital energies in one-electron atoms

We begin with the simplest: atoms and ions that contain only a single electron.

Hydrogen is of course the only electrically neutral species of this kind, but by removing electrons from heavier elements we can obtain one-electron ions such as He+and Li2+, etc. Each has a ground state configuration of 1s1, meaning that its single electron exhibits a standing wave pattern governed by the quantum numbers n=1, m=0 and ℓ=0, with the spin quantum number s undefined because there is no other electron to compare it with. All have simple emission spectra whose major features were adequately explained by Bohr's model.

orbital energies of 1-electron atoms

The most important feature of a single-electron atom is that the energy of the electron depends only on the principal quantum number n. As the above diagram shows, the quantum numbers ℓ and m have no effect on the energy; we say that all orbitals having a given value of n are degenerate. Thus the emission spectrum produced by exciting the electron to the n=2 level consists of a single line, not four lines. The wavelength of this emission line for the atoms H, He+and Li2+ will diminish with atomic number because the greater nuclear charge will lower the energies of the various n levels. For the same reason, the energies required to remove an electron from these species increases rapidly as the nuclear charge increases, because the increasing attraction pulls the electron closer to the nucleus, thus producing an even greater attractive force.

2  Electron-electron repulsion splits the ℓ sublevels

All the neutral atoms heavier than hydrogen contain more more than 1 electron. The resulting electrostatic repulsion between these electrons has profound effects on the energies of the various l sublevels — that is, on the energies of p-, d-, and f- orbitals, relative to the s orbitals.

It takes 1312 kJ of energy to remove the electron from a mole of hydrogen atoms. What might we expect this value to be for helium? Helium contains two electrons, but its nucleus contains two protons; each electron "sees" both protons, so we might expect that the electrons of helium would be bound twice as strongly as the electron of hydrogen. The ionization energy of helium should therefore be twice 1312 kJ/mol, or 2612 kJ/mol. However, if one looks at the spectrum of helium, the continuum is seen to begin at a wavelength corresponding to an ionization energy of 2372 kJ/mol, or about 90% of the predicted value.

Why are the electrons in helium bound less tightly than the +2 nuclear charge would lead us to expect? The answer is that there is another effect to consider: the repulsion between the two electrons; the resulting electron-electron repulsion subtracts from the force holding the electron to the nucleus, reducing the local binding of each.

Electron-electron repulsion is a major factor in both the spectra and chemical behavior of the elements heavier than hydrogen. In particular, it acts to "break the degeneracy" (split the energies) of orbitals having the same value of n but different ℓ.



The numbers on this diagram show the energies of some orbitals in the atoms of H, He, and Li, relative to the 2s-2p orbitals of H. The energies of the 1s orbitals fall rapidly as Z increases. The fall in energies of the 2s orbitals is smaller owing to electron-electron repulsion. The 2p orbitals have a node at the nucleus and are less affected by Z but are more affected by electron repulsion, so they remain higher than the 2s orbitals.



relative energies of atomic orbitals





Here we show how the energies of the s- and p-orbitals of different principal quantum numbers get split as the result of electron-electron repulsion. Notice the contrast with the similar diagram for one-electron atoms near the top of this page. The fact that electrons preferentially fill the lowest-energy empty orbitals is the basis of the rules for determining the electron configuration of the elements and of the structure of the periodic table.

3  The Aufbau rules

The German word Aufbau means "building up", and this term has traditionally been used to describe the manner in which electrons are assigned to orbitals as we carry out the imaginary task of constructing the atoms of elements having successively larger atomic numbers. In doing so, we are effectively "building up" the periodic table of the elements, as we shall shortly see.

A memnomic device that some students find useful is to sketch out a grid on which the various orbital types are written. This is overlaid with diagonal arrows as shown here.

How to play the Aufbau game
  • Electrons occupy the lowest-energy available orbitals; lower-energy orbitals are filled before the higher ones.
  • No more than two electrons can occupy any orbital.
  • For the lighter elements, electrons will fill orbitals of the same type only one electron at a time, so that their spins are all unpaired. They will begin to pair up only after all the orbitals are half-filled. This principle, which is a consequence of the electrostatic repulsion between electrons, is known as Hund's rule.
  • For the first 18 elements, up to the point where the 3s and 3p levels are completely filled, this scheme is entirely straightforward and leads to electronic configurations which you are expected to be able to work out for each of these elements.

The preceding diagram illustrates the main idea here. Each orbital is represented as a little box that can hold up to two electrons having opposite spins, which we designated by upward- or downward-pointing arrows. Electrons fill the lowest-energy boxes first, so that additional electrons are forced into wave-patterns corresponding to higher (less negative) energies. Thus in the above diagram, the "third" electron of lithium goes into the higher-energy 2s orbital, giving this element an electron configuration which we write 1s2 2s1.

Problem Example

What is the electron configuration of the atom of phosphorus, atomic number 15?

Solution: The number of electrons filling the lowest-energy orbitals are:

1s: 2 electrons, 2s: 2 electrons; 2p: 6 electrons, 3s: 2 electrons. This adds up to 12 electrons. The remaining three electrons go into the 3p orbital, so the complete electron configuration of P is 1s2 2s2 2p6 3s2 3p3.



The diagram below illustrates the Aufbau rules as they are applied to all the elements. Note especially how the energies of the nd orbitals fall between the (n–1)s and (n–1)p orbitals so, for example the 3d orbitals begin to fill after the 4s orbital is filled, but before electrons populate the 4p orbitals. A similar relation exists with d- and f-orbitals.

It is very important that you understand this diagram and how it follows from the Pauli exclusion principle. You should be able to reproduce it from memory up to the 6s level, because it forms the fundamental basis of the periodic table of the elements.

Bending the rules

d-electron configurations in 4th row transition metals

Inspection of a table of electron configurations of the elements reveals a few apparent non-uniformities in the filling of the orbitals, as is illustrated here for the elements of the so-called first transition series in which the 3d orbitals are being populated. These anomalies are a consequence of the very small energy differences between some of the orbitals, and of the reduced electron-electron repulsion when electrons remain unpaired (Hund's rule), as is evident in chromium, which contains six unpaired electrons.

The other anomaly here is copper, which "should" have the outer-shell configuration 3d94s2. The actual configuration of the Cu atom appears to be 3d104s1. Although the 4s orbital is normally slightly below the 3d orbital energy, the two are so close that interactions between the two when one is empty and the other is not can lead to a reversal. Detailed calculations in which the shapes and densities of the charge distributions are considered predict that the relative energies of many orbitals can reverse in this way. It gets even worse when f-orbitals begin to fill!

Because these relative energies can vary even for the same atom in different chemical environments, most instructors will not expect you to memorize them.

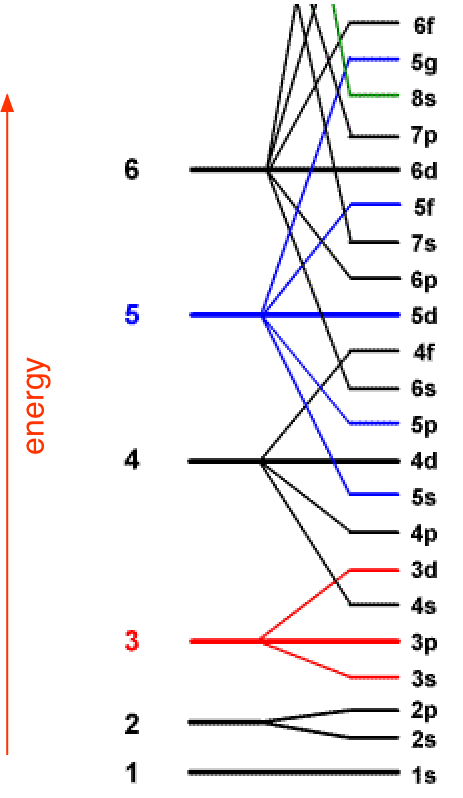

This diagram shows how the atomic orbitals corresponding to different principal quantum numbers become interspersed with one another at higher values of n. The actual situation is more complicated than this; calculations show that the energies of d and f orbitals vary with the atomic number of the element.







4  The periodic table, finally

The relative orbital energies illustrated above and the Pauli exclusion principle constitute the fundamental basis of the periodic table of the elements which was of course worked out empirically late in the 19th century, long before electrons had been heard of.

The periodic table of the elements is conventionally divided into sections called blocks, each of which designates the type of "sub-orbital" (s, p, d, f) which contains the highest-energy electrons in any particular element.

Note especially that:

  • The non-metallic elements occur only in the p-block;
  • The d-block elements contain the so-called transition metals;
  • The f-block elements go in between Groups 3 and 4 of the d-block.

periodic table blocks and groups



The table shown above is called the long form of the periodic table; for many purposes, we can use a "short form" table in which the d-block is shown below the s- and p- block "representative elements" and the f-block does not appear at all. Note that the "long form" would be even longer if the f-block elements were shown where they actually belong, between La-Hf and Ac-Db.

5  Some periodic table-related links

There are hundreds of periodic table sites on the Web. Here are some that are especially worth knowing about — in no particular order:

WebElements (Mark Winters, Sheffield U., UK) The elements in this online periodic table are linked to an extensive variety of chemical and physical data as well as background, crystallographic, nuclear, electronic, biological and geological information. You can ever hear how the Brits prounounce the name of the element!

It's Elemental - this is not so much a periodic table as a set of links to a set of excellent articles that focus on the history and uses of the different elements, each written by someone having a special knowlege or interest in a particular element. These articles appeared in an issue of Chemical & Engineering News that celebrated the 80th anniversary of that publication.

The Photographic Periodic Table - If you've wondered what the various elements look like (at least those that can be photographed), this is worth a look. Clicking on any element brings up a concise summary of its properties and major uses — and in many cases, of objects made of it, or of products containing it.

Biochemistry periodic table - clicking on an element brings up more information on its specific biochemical function, and relevant literature references.

Main Group Elements (Chemogenesis) - a somewhat more advanced look at these especially important elements.

The Periodic Table of Videos - This is not just another periodic table, but a huge resource that has expanded to include more than 500 videos, mostly quite short. At its simplest, you just click on an element, and watch a two-minute video that describes the element and its uses. There is also a larger series of "Molecular Videos" that describes different chemical substances and their uses — all designed to convey the fascination of Chemistry. Most of these videos star the picturesque Sir Martyn Poliakoff, a professor of Chemistry at the University of Nottingham in the U.K., where this project is based.

Mark Leach has assembled a very well-done and interesting page of historic and alternative periodic tables.

Chinese periodic tables  Several of these are available: nice one in English and Chinese - in simplified Chinese元素周期表

Comic Book periodic table (John Selegue and Jim Holler, U. Kentucky). - if both comics and chemistry are important in your life, you'll love this!

Periodic tables for handheld devicers - there are lots of these, many free. Check out Best Periodic Table IOS apps, or look in the Apple apps store under "education".

The internet database of periodic tables - This is the ultimate, comprehensive source for those whoare looking for something really special — historial, specialized, or just plain goofy. An interesting exploratioin of what human creativity can bring to Mendeleev's invention.

Periodic tables to wear - Chemistry-related apparel including periodic-table T-shirts, neckties, etc.

-

Chem1 logo

Chem1Electrons in atoms introduces electron-configurations of atoms for a course in General Chemistry. It is part of the General Chemistry Virtual Textbook, a free, online reference textbook for General Chemistry by of

Simon Fraser University .

This chapter covers the following topics: Orbital energies in one-electron atoms, effects of electron-electron repulsion in splitting the l sublevels, the Aufbau rules . It can be accessed directly at .

This material is directed mainly at the first-year college level, but much of it is also suitable for high-school students. It is licensed under a Creative Commons Attribution 3.0 Unported License.
